CentOS5.5環境下布署LVS keepalived
#!/bin/bash# BY kerryhu# MAIL:king_819@163.com# BLOG:http://kerry.blog.51cto.com# Please manual oper
#!/bin/bash
# BY kerryhu
# MAIL:king_819@163.com
# BLOG:http://kerry.blog.51cto.com
# Please manual operation yum of before Operation.....
系統環境`：CentOS 5.5（定制安裝）
組件：
Base
Development Libraries
Development Tools
Editors
Text-based Internet
lvs-master ：192.168.9.201
lvs-backup ：192.168.9.202
vip ：192.168.9.200
web1：192.168.9.203
web2：192.168.9.204
netmask ：255.255.255.0
gateway ：192.168.9.1

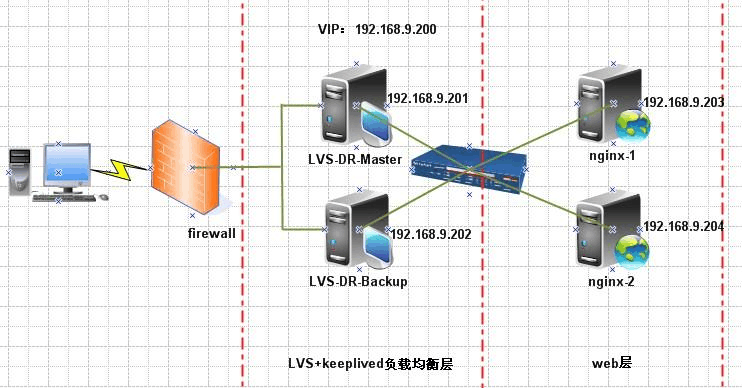

網絡拓?fù)洌?/p>
echo "============================ 更新系統時間 ======================" yum install -y ntp
ntpdate time.nist.gov
echo "00 01 * * * /usr/sbin/ntpdate time.nist.gov" /etc/crontab
echo “============================ 關閉不用服務 =======================”
,/root/del_servcie.sh # 附件中自定義腳本
echo “========================= 安裝ipvsadm 、keepalived ==================”
[root@master ~]# cd /usr/local/src
[root@master ~]# wget http://www.linuxvirtualserver.org/software/kernel-2.6/ipvsadm-1.24.tar.gz
[root@master ~]# wget http://www.keepalived.org/software/keepalived-1.1.17.tar.gz
[root@master ~]# ln -sv /usr/src/kernels/2.6.18-194.el5-i686/ /usr/src/linux
[root@master ~]# tar -zxvf ipvsadm-1.24.tar.gz
[root@master ~]# cd ipvsadm-1.24
[root@master ~]# make;make install
[root@master ~]# cd ..
[root@master ~]# tar -zxvf keepalived-1.1.17.tar.gz
[root@master ~]# cd keepalived-1.1.17
[root@master ~]# ./configure
configure: error:
!!! OpenSSL is not properly installed on your system. !!!
!!! Can not include OpenSSL headers files.
解決辦法：
[root@master ~]# yum -y install openssl-devel
[root@master ~]# ./configure
[root@master ~]# make;make install
編譯的時候出現這個提示，說明keepalived 和內核結合了，如果不是這樣的，需要加上這個參數./configure --with-kernel-dir=/kernel/path
Keepalived configuration
------------------------
Keepalived version : 1.1.17
Compiler : gcc
Compiler flags : -g -O2
Extra Lib : -lpopt -lssl -lcrypto
Use IPVS Framework : Yes
IPVS sync daemon support : Yes
Use VRRP Framework : Yes
Use LinkWatch : No
Use Debug flags : No
echo “======================= 配置keepalived ===========================”
[root@master ~]# cp /usr/local/etc/rc.d/init.d/keepalived /etc/rc.d/init.d/
[root@master ~]# cp /usr/local/etc/sysconfig/keepalived /etc/sysconfig/
[root@master ~]# mkdir /etc/keepalived
[root@master ~]# cp /usr/local/sbin/keepalived /usr/sbin/
[root@master ~]# vi /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
,notification_email {
king_819@163.com
}
notification_email_from king_819@163.com
smtp_server smtp.163.com
# smtp_connect_timeout 30
router_id LVS_DEVEL
}
# VIP1
vrrp_instance VI_1 {
state MASTER #備份服務器上將MASTER 改為BACKUP interface eth0
lvs_sync_daemon_inteface eth0
virtual_router_id 51
priority 100 # 備份服務上將100改為90
advert_int 5
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.9.200
#(如果有多個VIP ，繼續換行填寫.)
}
}
virtual_server 192.168.9.200 80 {
delay_loop 6 #(每隔10秒查詢r(jià)ealserver 狀態)
lb_algo wlc #(lvs 算法)
lb_kind DR #(Direct Route)
persistence_timeout 60 #(同一IP 的連接60秒內被分配到同一臺realserver) protocol TCP #(用TCP 協議檢查realserver 狀態)
real_server 192.168.9.203 80 {
weight 100 #(權重)
TCP_CHECK {
connect_timeout 10 #(10秒無響應超時)
nb_get_retry 3
delay_before_retry 3
connect_port 80
}
}
real_server 192.168.9.204 80 {
,weight 100
TCP_CHECK {
connect_timeout 10
nb_get_retry 3
delay_before_retry 3
connect_port 80
}
}
}
[root@master ~]# service keepalived start|stop
[root@master ~]# chkconfig –level 2345 keepalived on
echo “====================== 配置realserver =========================”
[root@web_1 ~]# vi /root/lvs_real.sh
#!/bin/bash
# description: Config realserver
#Written by : http://kerry.blog.51cto.com
SNS_VIP=192.168.9.200
/etc/rc.d/init.d/functions
case "$1" in
start)
/sbin/ifconfig lo:0 $SNS_VIP netmask 255.255.255.255 broadcast $SNS_VIP /sbin/route add -host $SNS_VIP dev lo:0
echo "1" >/proc/sys/net/ipv4/conf/lo/arp_ignore
echo "2" >/proc/sys/net/ipv4/conf/lo/arp_announce
echo "1" >/proc/sys/net/ipv4/conf/all/arp_ignore
echo "2" >/proc/sys/net/ipv4/conf/all/arp_announce
sysctl -p >/dev/null 2>&1
echo "RealServer Start OK"
;;
stop)
/sbin/ifconfig lo:0 down
/sbin/route del $SNS_VIP >/dev/null 2>&1
echo "0" >/proc/sys/net/ipv4/conf/lo/arp_ignore
echo "0" >/proc/sys/net/ipv4/conf/lo/arp_announce
echo "0" >/proc/sys/net/ipv4/conf/all/arp_ignore
echo "0" >/proc/sys/net/ipv4/conf/all/arp_announce
echo "RealServer Stoped"
;;
*)
,echo "Usage: $0 {start|stop}"
exit 1
esac
exit 0
[root@web_1 ~]# chmod x /roo/lvs_real.sh
[root@web_1 ~]# /root/lvs_real.sh start
[root@web_1 ~]# ifconfig
[root@web_1 ~]# echo “/root/lvs_real.sh start” >> /etc/rc.local
echo “===================== 測試LVS keepalived ========================” #LVS_master、LVS_backup上開啟keepalived ，LVS_master先綁定VIP

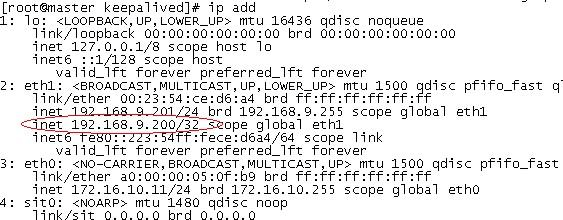

LVS_master：

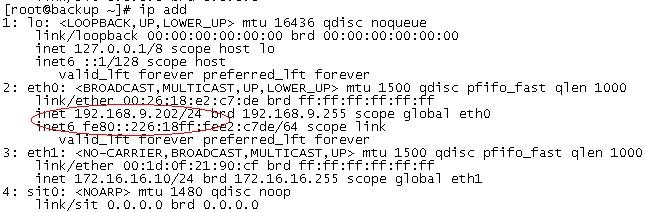

LVS_backup：
#解析域名，測試訪問
,
#測試關閉LVS_master，短暫的掉包后，LVS_backup馬上接替工作
LVS_backup接替LVS_master綁定
VIP
LVS_backup負責轉發
LVS_master重啟完成后，就會自動接回控制權，繼續負責轉發
,
#測試關閉其中一臺
realserver
通過上面測試可以知道，當realserver 故障或者無法提供服務時，負載均衡器通過健康檢查自動把失效的機器從轉發隊列刪除掉，實現故障隔離，保證用戶的訪問不受影響
#重啟被關閉的
realserver
當realserver 故障恢復后，負載均衡器通過健康檢查自動把恢復后的機器添加到轉發隊列中
