, , ,H3C WX系列AC Fit AP 進行IPv4三層網絡連接典型配置舉例4.2 配置思路配置DHCP
H3C WX系列AC Fit AP 進行IPv4三層網絡連接典型配置舉例
4.2 配置思路
配置DHCP 服務器，配置DNS 服務器，配置AC 。
4.3 使用版本
H3C Comware Platform Software
Comware Software, Version 5.00, Release 1103
Copyright (c) 2004-2007 Hangzhou H3C Tech. Co., Ltd. All rights reserved. H3C WX5002-128 uptime is 0 week, 0 day, 0 hour, 11 minutes
CPU type: BCM MIPS 1250 700MHz
1024M bytes DDR SDRAM Memory
32M bytes Flash Memory
Pcb Version: A
Logic Version: 1.0 d
Basic BootROM Version: 1.13 e Extend BootROM Version: 1.14 r
[SLOT 1]CON (Hardware)A, (Driver)1.0, (Cpld)1.0
[SLOT 1]GE1/0/1 (Hardware)A, (Driver)1.0, (Cpld)1.0e
[SLOT 1]GE1/0/2 (Hardware)A, (Driver)1.0, (Cpld)1.0t
[SLOT 1]M-E1/0/1 (Hardware)A, (Driver)1.0, (Cpld)1.0s i
4.4 配置步驟 g
e
4.4.1 配置L3SW
# SW上的路由如下：R n
[L3SW]vlan 2U
[L3SW-vlan2]port e 1/0/6 to e 1/0/10
[L3SW-vlan2]vlan 3
[L3SW-vlan3]port e 1/0/11 to e 1/0/15
[L3SW-vlan3]vlan 8
[L3SW-vlan8]port e 1/0/16 to e 1/0/20
[L3SW-vlan8]quit
[L3SW]interface vlan 1
[L3SW-Vlan-interface1]ip add 24.10.1.9 8
[L3SW-Vlan-interface1]interface vlan 2
[L3SW-Vlan-interface2]ip add 24.20.1.1 24
[L3SW-Vlan-interface2]interface vlan 3
[L3SW-Vlan-interface3]ip add 24.30.1.1 24
[L3SW-Vlan-interface3]interface vlan 8
[L3SW-Vlan-interface8]ip add 8.10.1.8 8
file://C:Documents and Settings?ministratorLocal SettingsTempR.htmPage 4 of 82010-11-19
,H3C WX系列AC Fit AP 進行IPv4三層網絡連接典型配置舉例
[L3SW-Vlan-interface8]quit
[L3SW]display ip routing-table
Routing Table: public net
Destination/Mask Protocol Pre Cost Nexthop Interface
8.0.0.0/8 DIRECT 0 0 8.10.1.8 Vlan-interface8
8.10.1.8/32 DIRECT 0 0 127.0.0.1 InLoopBack0 24.0.0.0/8 DIRECT 0 0 24.10.1.9 Vlan-interface1 24.10.1.9/32 DIRECT 0 0 127.0.0.1 InLoopBack0 24.20.1.0/24 DIRECT 0 0 24.20.1.1 Vlan-interface2 24.20.1.1/32 DIRECT 0 0 127.0.0.1 InLoopBack0 24.30.1.0/24 DIRECT 0 0 24.30.1.1 Vlan-interface3 24.30.1.1/32 DIRECT 0 0 127.0.0.1 InLoopBack0 127.0.0.0/8 DIRECT 0 0 127.0.0.1 InLoopBack0 127.0.0.1/32 DIRECT 0 0 127.0.0.1 InLoopBack0 Page 5 of 8# L3SW上配置DHCP relay：
[L3SW]interface vlan 2
[L3SW-Vlan-interface2]dhcp-server 1
[L3SW-Vlan-interface2]interface vlan 3
[L3SW-Vlan-interface3]dhcp-server 1
4.4.2 配置DHCP Server
U n R e g i s 配置DHCP Server以便給AP 分配IP 地址。需要配置DNS 服務器地址、缺省網關、DNS 域名（即所在DNS 域名）等選項。 t e r e
4.4.3 配置DNS 服務器：
建立AC 對應的域名，在該域名下建立AC 解析項（AC 的主機名為h3c ）。
file://C:Documents and Settings?ministratorLocal SettingsTempR.htmd 2010-11-19[L3SW]dhcp-server 1 ip 8.1.1.4
,H3C WX系列AC Fit AP 進行IPv4三層網絡連接典型配置舉例Page 6 of 8
4.4.4 配置AC
# 置 AC 的IP 地址：
[AC]interface Vlan-interface 1
[AC-Vlan-interface1]ip address 24.10.1.10 8
[AC]ip route-static 0.0.0.0 0 24.10.1.9
[AC]wlan service-template 1 clear
[AC-wlan-st-1]ssid test_ap1
[AC-wlan-st-1]bind WLAN-ESS 1
[AC-wlan-st-1]quit
[AC-wlan-rp-1]quit [AC-wlan-st-1]service-template enable [AC]wlan radio-policy 1
[AC]wlan ap test_ap1 model wa2100
[AC-wlan-ap-test_ap1]serial-id hhx1
[AC-wlan-ap-test_ap1]radio 1 type 11g
[AC-wlan-ap-test_ap1-radio-1]service-template 1
[AC-wlan-ap-test_ap1-radio-1]radio-policy 1
[AC-wlan-ap-test_ap1-radio-1]radio enable
[AC-wlan-ap-test_ap1-radio-1]quit
[AC-wlan-ap-test_ap1]quit
# 置AP2：
[AC]wlan service-template 2 clear
[AC-wlan-st-2]ssid test_ap2
[AC-wlan-st-2]authentication-method open-system
file://C:Documents and Settings?ministratorLocal SettingsTempR.htmU n R [AC-wlan-st-1]authentication-method open-system e g # 置AP1： i s # 置缺省網關： t e 2010-11-19r e d
,H3C WX系列AC Fit AP 進行IPv4三層網絡連接典型配置舉例
[AC-wlan-st-2]bind WLAN-ESS 2
[AC-wlan-st-2]service-template enable
[AC-wlan-st-2]quit
[AC]wlan radio-policy 2
[AC-wlan-rp-2]quit
[AC]wlan ap test_ap2 model WA2100
[AC-wlan-ap-test_ap2]serial-id h3c000fe2324100
[AC-wlan-ap-test_ap2]radio 1
[AC-wlan-ap-test_ap2-radio-1]service-template 2
[AC-wlan-ap-test_ap2-radio-1]radio-policy 2
[AC-wlan-ap-test_ap2-radio-1]channel 6
[AC-wlan-ap-test_ap2-radio-1]radio enable
[AC-wlan-ap-test_ap2-radio-1]quit Page 7 of 8
4.5 驗證結果
(1) 在AC 上查看到AP 已經成功注冊
[AC]display wlan ap all
Total Number of APs configured : 4
Total Number of configured APs connected : 2
Total Number of auto APs connected : 0
AP Profiles
AP Name APID State Model Serial-ID
test_ap1 1 Run WA2100 hhx1
test_ap2 2 Run WA2100 h3c000fe2324100
------------------------------------------------------------------------------- 從上面的“State ”可以看出來，配置的AP 已經成功注冊到AC 上。
(2) 在AC 上查看到無線Client 已經成功上線
[AC]display wlan client
Total Number of Clients Connected : 1
Client Information
------------------------------------------------------------------------------- MAC Address BSSID AID State PS Mode QoS Mode ------------------------------------------------------------------------------- 0017-9a00-7ba3 000f-e212-5100 1 Running Active WMM 0016-6F99-FC21 000f-e232-4100 2 Running Active WMM -------------------------------------------------------------------------------
在網絡可通的情況下，Client 1與Client 2可以相互ping 通。
在網絡可通的情況下，PC 1與Client 2可以相互ping 通。

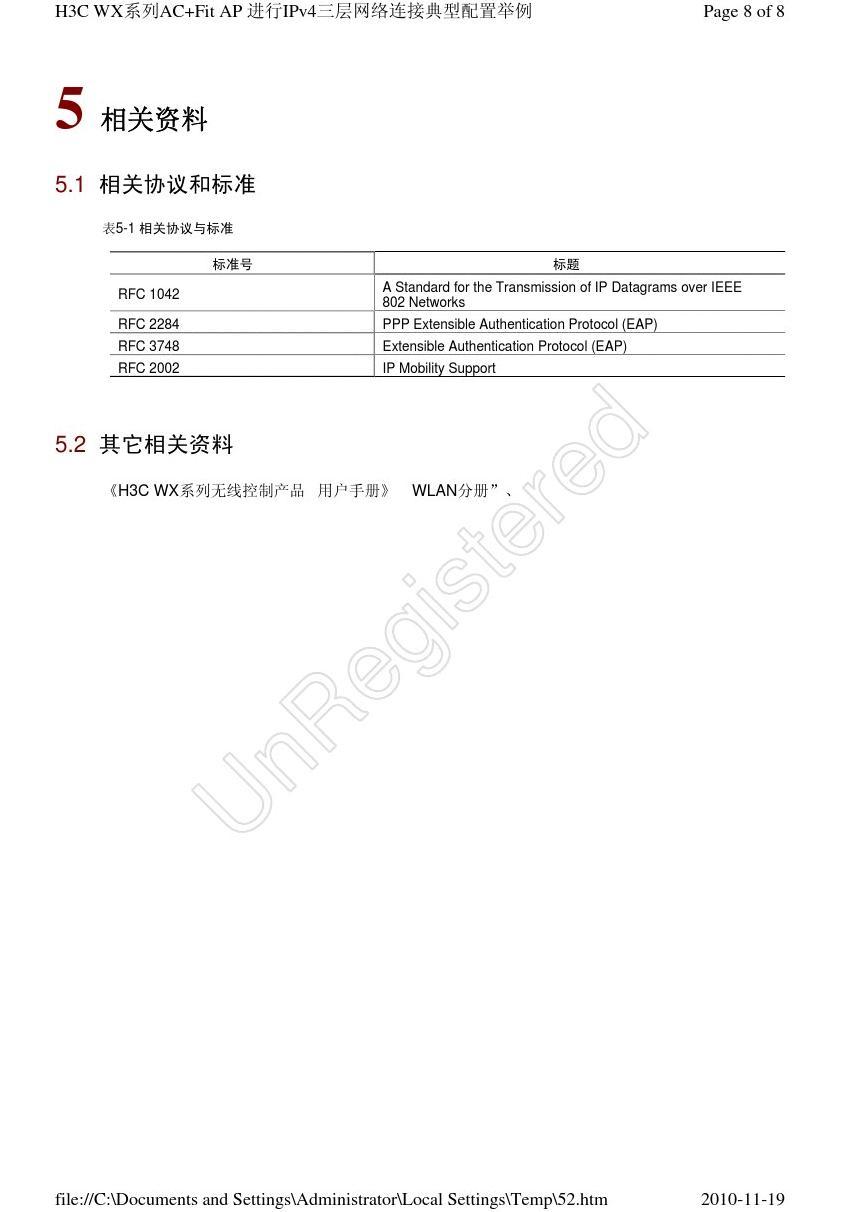

file://C:Documents and Settings?ministratorLocal SettingsTempR.htmU Total Number of Clients : 1 n R e g ------------------------------------------------------------------------------- i s ------------------------------------------------------------------------------- t e r e 2010-11-19d
,
