rhel5 memcache 部署
bbs.sinounix.comRHEL 5 MEMCACHE 部署1. 什么是Memcache 陳建 cjhp1314@hotmail.comMemcached 是高性能的
bbs.sinounix.com
RHEL 5 MEMCACHE 部署
1. 什么是Memcache 陳建 cjhp1314@hotmail.com
Memcached 是高性能的,分布式的內存對象緩存系統,用于在動態應用中減少數據庫負載,提升訪問速度, 目前全世界不少人使用這個緩存項目來構建自己大負載的網站,來分擔數據庫的壓力。它可以應對任意多個連接,使用非阻塞的網絡IO 。它的工作機制是在內存中開辟一塊空間,然后建立一個HashTable ,Memcached 管理這些HashTable 。
許多Web 應用都將數據保存到RDBMS 中,應用服務器從中讀取數據并在瀏覽器中顯示。但隨著數據量的增大、訪問的集中,就會出現RDBMS 的負擔加重、數據庫響應惡化、網站顯示延遲等重大影響。
Memcached 是高性能的分布式內存緩存服務器。一般的使用目的是,通過緩存數據庫查詢結果,減少數據庫訪問次數,以提高動態Web 應用的速度、提高可擴展性。
2. Memcache 工作原理
首先 memcached 是以守護程序方式運行于一個或多個服務器中,隨時接受客戶端的連接操作,客戶端可以由各種語言編寫,目前已知的客戶端 API 包括 Perl/PHP/Python/Ruby/Java/C#/C 等等??蛻舳嗽谂c memcached 服務建立連接之后,接下來的事情就是存取對象了,每個被存取的對象都有一個唯一的標識符 key,存取操作均通過這個 key 進行,保存到 memcached 中的對象實際上是放置內存中的,并不是保存在 cache 文件中的,這也是為什么 memcached 能夠如此高效快速的原因。注意,這些對象并不是持久的,服務停止之后,里邊的數據就會丟失。
與許多 cache 工具類似,Memcached 的原理并不復雜。它采用了C/S的模式,在 server 端啟動服務進程,在啟動時可以指定監聽的 ip,自己的端口號,所使用的內存大小等幾個關鍵參數。一旦啟動,服務就一直處于可用狀態。Memcached 的目前版本是通過C 實現,采用了單進程,單線程,異步I/O,基于事件 (event_based) 的服務方式. 使用 libevent 作為事件通知實現。多個 Server 可以協同工作,但這些 Server 之間是沒有任何通訊聯系的,每個 Server 只是對自己的數據進行管理。Client 端通過指定 Server 端的 ip 地址(通過域名應該也可以) 。需要緩存的對象或數據是以 key->value 對的形式保存在Server 端。key 的值通過 hash 進行轉換,根
,bbs.sinounix.com
據 hash 值把 value傳遞到對應的具體的某個 Server 上。當需要獲取對象數據時,也根據 key 進行。首先對 key 進行 hash,通過獲得的值可以確定它被保存在了哪臺 Server 上,然后再向該 Server 發出請求。Client 端只需要知道保存 hash(key) 的值在哪臺服務器上就可以了。
簡單來說,memcache 的工作就是在專門的機器的內存里維護一張巨大的 hash 表,來存儲經常被讀寫的一些數組與文件,從而極大的提高網站的運行效率。
3. 安裝部署
1. 本機環境
SYSTEM RHEL 5.4 32bit
PHP php-5.3.2
NYSQL mysql-5.1.45。
2. 所需軟件包
libevent 事件通訊軟件 (最新版libevent-1.4.14-stable) http://www.monkey.org/~provos/libevent/
memcache php擴展組件,memcache 客戶端(最新版memcache-2.2.5) http://pecl.php.net/package/memcache
memcached memcache服務端(最新版 memcached-1.4.0) http://danga.com/memcached/dist/
3. 安裝
1. 安裝libevent
#tar -zxf libevent-1.4.14a-stable.tar.gz
#cd libevent-1.4.14-stable/
#./configure --prefix=/usr/local/libevent
#make && make install
#系統可能已經安裝有rpm 包的libevent ,但建議使用源碼包的libevent
2. 安裝memcached
#tar -zxf memcached-1.4.0.tar.gz
,bbs.sinounix.com
#cd memcached-1.4.0
#./configure --prefix=/usr/local/memcached --with-libevent=/usr/local/libevent #make && make install
#建立memcache 用戶
#useradd –M memcache
#啟動服務
#memcached -d -m 10 -u memcache -l 192.168.10.3 -p 11211 -c 256 -P /tmp/memcached.pid 參數說明
-p 指定端口號(默認11211)
-m 指定最大使用內存大小(默認64MB )
-t 線程數(默認4)
-l 連接的IP 地址, 默認是本機
-d 選項是啟動一個守護進程
-d restart|stop重啟|關閉正在運行的memcached 服務
-m 最大內存使用,單位MB 。默認64MB
-M 內存耗盡時返回錯誤,而不是刪除項
-c 選項是最大運行的并發連接數,默認是1024,按照你服務器的負載量來設定 -f 塊大小增長因子,默認是1.25
-n 最小分配空間,key value flags默認是48
-P 是設置保存Memcache 的pid 文件
設置開機自啟動memcache
vi /etc/rc.local
/usr/local/memcached/bin/memcached -d -m 100 -u memcache -l 192.168.10.3 -p 11211 -c 256 -P /tmp/memcached.pid
關閉 memcache
# kill `cat /tmp/memcached.pid`
3. 安裝memcache php擴展模塊
#tar -zxf memcache-2.2.5.tgz
#cd memcache-2.2.5
#find / -name phpize #確定phpize 位置,生成編譯環境
,bbs.sinounix.com
#/usr/local/php/bin/phpize
#./configure --enable-memcache --with-php-config=/usr/local/php/bin/php-config --with-zlib-dir
#make && make install
此時你會看到如下提示:
Installing shared
extensions: /usr/local/php/lib/php/extensions/no-debug-non-zts-20090626/
你修改php.ini ,做如下2步操作:
; extension_dir = "./"
將上面這行修改為
extension_dir = "/usr/local/php/lib/php/extensions/no-debug-non-zts-20090626/" 再新增加一行,內容如下:
extension=memcache.so
#重啟apache 服務
#/usr/local/apache-2.15/bin/apachectl restart
測試是否安裝成功
#編輯首頁信息,簡單測試了如下2種情況
vi index.php
phpinfo()
?>
,bbs.sinounix.com
vi index.php
$mem = new Memcache;
$mem->connect("192.168.10.3", 11211)or die ("Could not connect"); $mem->set('key', 'This is a test!', 0, 60);
$val = $mem->get('key');
echo $val;
?>
#未啟用memcache 時
bbs.sinounix.com
#su – memcache
#/usr/local/bin/memcached –d (不加參數表示以默認方式啟動)
bbs.sinounix.com
4. 安裝memcache 小工具
#wget #unzip memcachephp.zip
#mv memcache.php /usr/local/apache-2.15/htdocs/

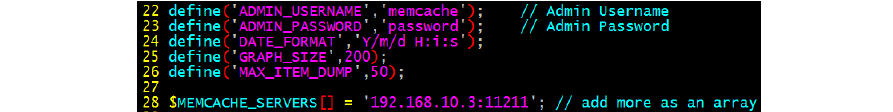

#vi /usr/local/apache-2.15/htdocs/memcache.php
根據你的配置修改:
bbs.sinounix.com
bbs.sinounix.com
4. 常見問題:
1. /usr/local/bin/memcached: error while loading shared libraries:
libevent-1.4.so.1: cannot open shared object file: No such file or directory , 缺少庫文件的解決方法。
1.1. 首先 find / -name libevent-1.4.so.1 找到缺少的鏈接文件到底在那兒。
#find / -name libevent-1.4.so.1
/usr/local/src/libevent-1.4.14-stable/.libs/libevent-1.4.so.1
/usr/local/libevent/lib/libevent-1.4.so.1
1.2. 查看出錯原因在哪
#LD_DEBUG=libs /usr/local/bin/memcached -v
10617: find library=libevent-1.4.so.1 [0]; searching 10617: search cache=/etc/ld.so.cache
10617: search
path=/lib/tls/i686/sse2:/lib/tls/i686:/lib/tls/sse2:/lib/tls:/lib/i686/sse2:/lib/i686:/lib/sse2:/lib:/usr/lib/tls/i686/sse2:/usr/lib/tls/i686:/usr/lib/tls/sse2:/usr/lib/tls:/usr/lib/i686/sse2:/usr/lib/i686:/usr/lib/sse2:/usr/lib (system search path)
10617: trying
file=/lib/tls/i686/sse2/libevent-1.4.so.1
10617:
trying file=/lib/tls/i686/libevent-1.4.so.1
,bbs.sinounix.com
10617: trying file=/lib/tls/sse2/libevent-1.4.so.1 10617: trying file=/lib/tls/libevent-1.4.so.1
10617: trying file=/lib/i686/sse2/libevent-1.4.so.1 10617: trying file=/lib/i686/libevent-1.4.so.1
10617: trying file=/lib/sse2/libevent-1.4.so.1
10617: trying file=/lib/libevent-1.4.so.1
10617: trying
file=/usr/lib/tls/i686/sse2/libevent-1.4.so.1
10617: trying
file=/usr/lib/tls/i686/libevent-1.4.so.1
10617: trying
file=/usr/lib/tls/sse2/libevent-1.4.so.1
10617: trying file=/usr/lib/tls/libevent-1.4.so.1 10617: trying
file=/usr/lib/i686/sse2/libevent-1.4.so.1
10617: trying file=/usr/lib/i686/libevent-1.4.so.1 10617: trying file=/usr/lib/sse2/libevent-1.4.so.1 10617: trying file=/usr/lib/libevent-1.4.so.1
10617:
/usr/local/bin/memcached: error while loading shared libraries:
libevent-1.4.so.1: cannot open shared object file: No such file or directory
1.3. 通過trying file=/usr/lib/libevent-1.4.so.1得知我們需要做個軟連接到這,因
為這個文件的真實位置在 /usr/local/lib/libevent-1.4.so.2
#ln -s /usr/local/libevent/lib/libevent-1.4.so.1 /usr/lib/libevent-1.4.so.1
1.4. 錯誤消除,類似的問題都可以這樣解決。
5. Memcache 其他相關資料,轉自互聯網,感謝原作者
1. Memcahce 協議(中英對照)
源自 http://www.gaobo.info/read.php/447.htm
協議
memcached 的客戶端使用TCP 鏈接 與 服務器通
)一個運行中的memcached 服務器監視一些(可
器,讀取回應,最后關閉連接。 Protocol Clients of memcached communicate with server available; details are below under "UDP protocol.") (configurable) port; clients connect to that port, 訊。(UDP 接口也同樣有效,參考后文的 “UDP協議”through TCP connections. (A UDP interface is also 設置)端口??蛻舳诉B接這些端口,發送命令到服務A given running memcached server listens on some
